Pivot




Using the Pivot Gesture

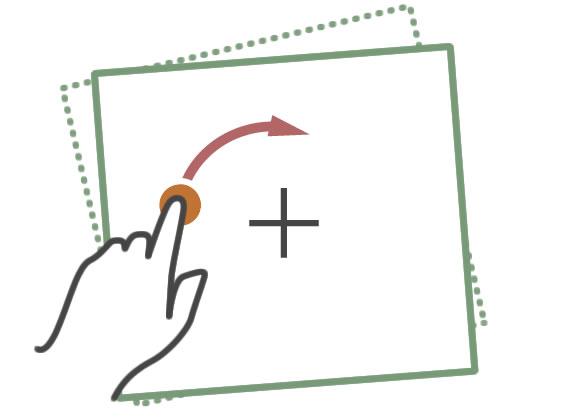

Pivot allows objects to rotate/spin on an axis based on a user's touch point that is off-center.

Mechanics and Code Samples

To register a ‘pivot’ event, the user places a finger on an object and slides it in an arcing motion.

Enable the Pivot gesture on a TouchSprite ("myTouchSprite" in this example) by adding the gesture to the gestureList property for the TouchSprite:

1
myTouchSprite.gestureList = {"1-finger-pivot":true};

Register an event for the gesture by listening for the 'PIVOT' GWGestureEvent:

2
myTouchSprite.addEventListener(GWGestureEvent.PIVOT, gesturePivotHandler);

Finally, implement the script(s) that you want to respond to the event in a custom handler:

3
4
5
6
7
private function gesturePivotHandler(event:GWGestureEvent):void
{
    trace("g pivot: ", event.value.dtheta);
    event.target.$rotation += event.value.dtheta;
}

In this example, the pivot delta value of the Pivot gesture is being sent to the Output window.

Gestures can be utilized with a number of touch points. For detailed information about this gesture and more, consult the GestureML Wiki.
