Rotate




Using the Rotate Gesture

Calculates change in touch points on an object relative to orientation of stage.

Mechanics and Code Samples

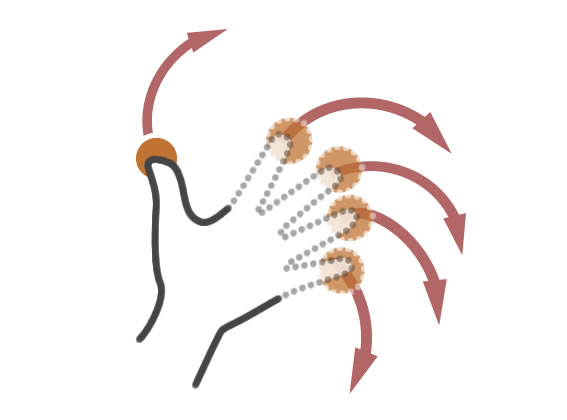

To register a ‘rotate’ event, the user places two or more fingers on an object and swivels their arm back-and-forth.

Enable the Rotate gesture on a TouchSprite ("myTouchSprite" in this example) by adding the gesture to the gestureList property for the TouchSprite:

1
myTouchSprite.gestureList = {"n-rotate":true};

Register an event for the gesture by listening for the 'ROTATE' GWGestureEvent:

2
myTouchSprite.addEventListener(GWGestureEvent.ROTATE, gestureRotateHandler);

Finally, implement the script(s) that you want to respond to the event in a custom handler:

3
4
5
6
7
private function gestureRotateHandler(event:GWGestureEvent):void
{
    trace("g rot: ", event.value.dtheta);
    event.target.$rotation += event.value.dtheta;
}

In this example, the rotation delta value of the Rotate gesture is being sent to the Output window.

Gestures can be utilized with a number of touch points. For detailed information about this gesture and more, consult the GestureML Wiki.
